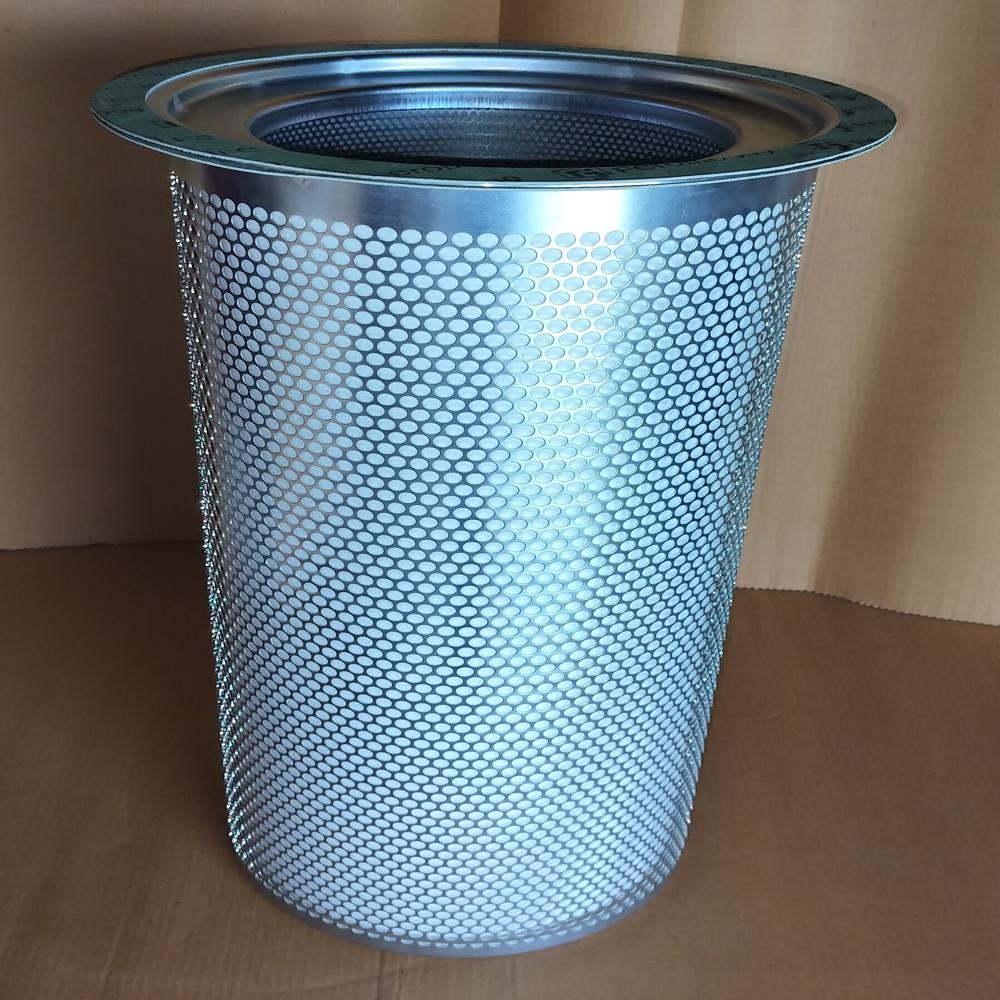

Air Oil Separator 220413261

Air Oil Separator 220413261 Specification

Temperature Range
-20 to 120 C

Connecting Type
Standard flange

Pressure
Up to 15 bar

Filter Type
Air Oil Separator

Capacity
Optimized for continuous compressor duty

Efficiency (%)
99.99

Cleaning Method
Disposable/Replaceable

Media Type
Synthetic fiber filter media

Filtration Grade
HEPA-level

Flow Rate
16 - 20 m3/min

Condition
New

Material
Micro-glass fiber with metal end caps

Mesh
Fine filtration mesh

Diameter
155 mm

Construction
Cylindrical, multi-layer element

Medium Filter
Compressed air-oil mixture

Weight
1.2 kg

Shape
Round

Feature
High efficiency separation of air and oil mist for compressors

Installation Position
Vertical

Outer Diameter
153 mm

Length
312 mm

Inner Diameter
92 mm

Sealing Type
High integrity sealing gasket

Compatibility
OEM replacement for Atlas Copco

Recommended Use
Rotary screw & rotary vane air compressors

Maximum Oil Carryover
3 ppm

Initial Pressure Drop
0.2 bar

End Cap Material
Galvanized steel

About Air Oil Separator 220413261

ntroducing the 220413261 Air Oil Separator, a high-quality industrial product designed to provide efficient and reliable filtration. Made from durable FRP material, this pre-filter has different sizes available to meet your specific needs. It is perfect for use in various industrial applications, ensuring that your equipment runs smoothly and efficiently while maintaining optimal performance. The SP1009 Air Oil Separator is a new product that comes with a 1-year warranty. It is designed to deliver superior filtration performance while maximizing the lifespan of your equipment. With its high-quality features, you can be confident that your investment will pay off in the long run.

FAQs of 220413261 Air Oil Separator:

Q: What is the 220413261 Air Oil Separator made of?

A: The SP1009 Air Oil Separator is made of FRP material.

Q: What is the filtration grade of the 220413261 Air Oil Separator?

A: The 220413261 Air Oil Separator is a pre-filter.

Q: What is the warranty period for the 220413261 Air Oil Separator?

A: The SP1009 Air Oil Separator comes with a 1-year warranty.

Q: Is the 220413261 Air Oil Separator suitable for industrial use?

A: Yes, the SP1009 Air Oil Separator is designed specifically for industrial use.

Q: What sizes are available for the 220413261 Air Oil Separator?

A: The SP1009 Air Oil Separator is available in different sizes to meet your specific needs.

Engineered for High Performance Air Compression

This air oil separator features a robust cylindrical design constructed with micro-glass fiber media and galvanized steel end caps to ensure optimal durability, lifespan, and filtration performance. Its HEPA-level efficiency achieves 99.99% separation of oil mist from compressed air, ensuring clean air output for industrial operations and protecting downstream equipment from contamination and wear.

Seamless OEM Replacement for Atlas Copco Compressors

Designed as a direct OEM replacement, the 220413261 separator is fully compatible with select Atlas Copco rotary screw and rotary vane air compressors. It fits securely with a standard flange connection and vertical installation, making the upgrade or replacement process straightforward and minimizing downtime. Trust in its fine mesh filtration and high integrity sealing for reliable, energy-efficient performance.

FAQ's of Air Oil Separator 220413261:

Q: How is the Air Oil Separator 220413261 installed in my compressor system?

A: The Air Oil Separator 220413261 is designed for vertical installation using a standard flange connection. Ensure that the system is depressurized and follow your compressor's service manual for safe and effective replacement. The high integrity sealing gasket ensures a secure, leak-proof fit.

Q: What is the recommended use for this air oil separator?

A: This separator is recommended for rotary screw and rotary vane air compressors, particularly as an OEM replacement for compatible Atlas Copco models. It is optimized for continuous duty in industrial compressed air systems where high efficiency oil separation is critical.

Q: When should I replace the Air Oil Separator 220413261?

A: You should replace the separator according to your compressor manufacturer's maintenance schedule or when you observe increased pressure drop, higher than normal oil carryover, or after reaching the recommended operating hours. Since it is a disposable, non-cleanable element, regular replacement ensures peak compressor performance.

Q: Where is the separator positioned within the compressor system?

A: This air oil separator is installed vertically within the compressor's separator vessel or housing, directly after the compression chamber to effectively filter the compressed air-oil mixture before it is routed to the air receiver or downstream equipment.

Q: What process does the separator use to filter oil from compressed air?

A: Utilizing multiple layers of fine synthetic micro-glass fiber, the separator efficiently captures oil mist and droplets from compressed air as it passes through, achieving HEPA-level (99.99%) filtration. The separated oil is collected and drained back to the sump while the clean air exits the compressor.

Q: How does using this separator benefit my compressor's operation?

A: Employing this highly efficient air oil separator minimizes oil carryover to just 3 ppm, extends equipment lifespan, reduces contamination, and promotes reliable compressor function. The optimized design also maintains low pressure drop (0.2 bar) and supports energy-efficient operation.
